PRODUCT FEATURES
UItra-low frequency speed control technology far surpasses standard VSD compressor systems.Capable of lower than 15Hz operation，this system is truly capable of constant variable pressure operation and significant energy saving.
USoft-start feature allows for little or no impact on the power supply system and marginalises mechanical wear and tear up on start-up.
Leakage is always present in any air system.At full pressure a good system can loose 0.2Mpa.Zerlion VSD machines can reduce that loss by up to 25%simply by supplying the air pressure that is required.
Advanced Vector variable frequency control reduces vibration and noise.The unit can be used without the requirement for a special room.
This means saving of all resources required to install a machine in an external location such as pipe and power lines and land.Oil exhaust output is lower than 3ppm thus negating enviromantal impact.
Utilising frequency control for the cooling fan and drive motor allows for up to 30%energy savings.This translates into less frequent servicing of the screw compressor thus further significant savings are achieved over the life of the machine.
|
Parameter/Model |

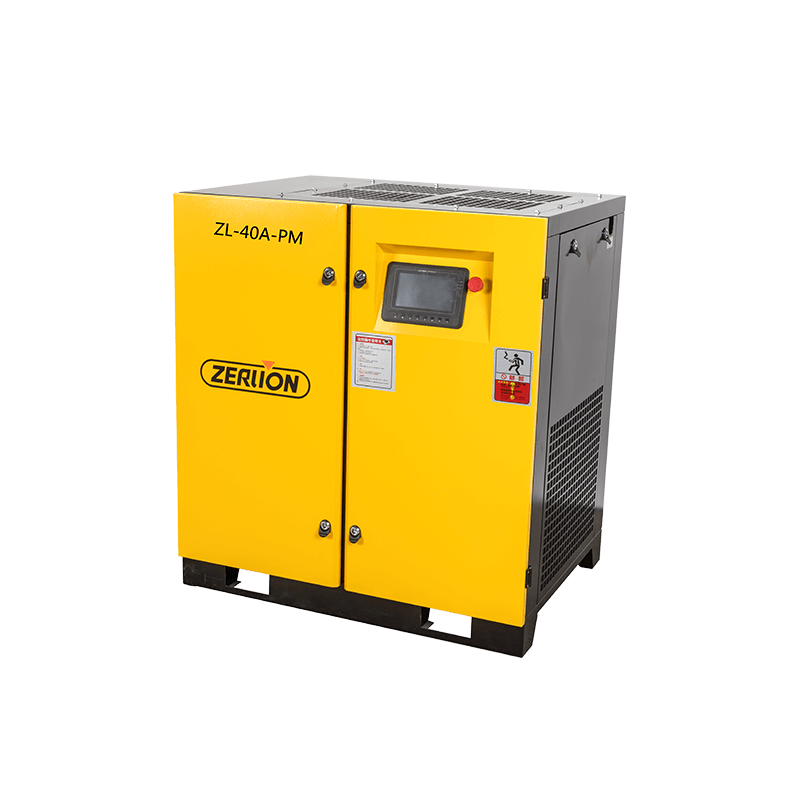

ZL-40A-PM |
|
Displaceme(m³/min) Pressure Pressure(Mpa) |
5.3/0.7 |
| 5.0/0.8 | |
| 4.5/1.0 | |
| 4.0/1.2 | |
|
Cooling Method |
air cooling |
|
Lubrication volume (L) |
18 |
|
Noise db |
68±2 |
| Driving mode |
Direct driving |
|
Voltage |
220V/380V/415V;50Hz/60Hz |
|
Power (KW/HP) |
30/40 |
|
Start up mode |
Y-▲Start-up;Variable Frequency Starting |
|
Dimention(L*W*H)mm |
1380*850*1160 |
|
Weight(KG) |
600 |
|
Output pipDiameter |
G 1" |
| Location: | China |
| Business Type: | Manufacturer, Exporter |
| Brands: | ZHEJIANG ZHILUN MECHANICAL & ELECTRICAL CO., LTD. |
| Terms of payment and delivery: | ?L/C, T/T |
| Minimum order quantity: | 20 PCS |
| Price: | Consultation |
| Packing details: | Wooden case, Honeycomb case? |
| Delivery time: | About 25 working days after receiving the deposit on our bank account |
| Payment method: | FOB, CIF |
Taizhou Zhilun Mechanical & Electrical Co., Ltd. is one of the leading China ZL-40A-PM 40HP Permanent Magnet Frequency Screw Air Compressor Suppliers and OEM ZL-40A-PM 40HP Permanent Magnet Frequency Screw Air Compressor Company. We always follow up the principle of people-oriented, legitimate business, honest& trustworthy, focus on the industry of the air compressor, with the effort to create a first-class brand in the industry of air compressor.
Customization: We have our own development team, has a strong successor to the development of ability, can satisfy different customers, different needs.
Cost: We have our own machining factory. So we can offer the best price and best ZL-40A-PM 40HP Permanent Magnet Frequency Screw Air Compressor directly.
Quality: We have our own testing lab and advanced and complete inspection equipment, which can ensure the quality of the ZL-40A-PM 40HP Permanent Magnet Frequency Screw Air Compressor.
Capacity:Our annual screw compressor production capacity is over 40000 pc,, piston air compressor production capacity is over 300000 pc .which we can meet the needs of different customers with different purchase quantity.
Service: We focus on developing high-quality products for top-end markets. Our ZL-40A-PM 40HP Permanent Magnet Frequency Screw Air Compressor are in line with international standards and are mainly exported to Europe, America, Japan, and other destinations around the world.
Shipment: We are only 220 kilometers away from the Ningbo Port, it is very convenient and efficient to ship goods to any other countries.
